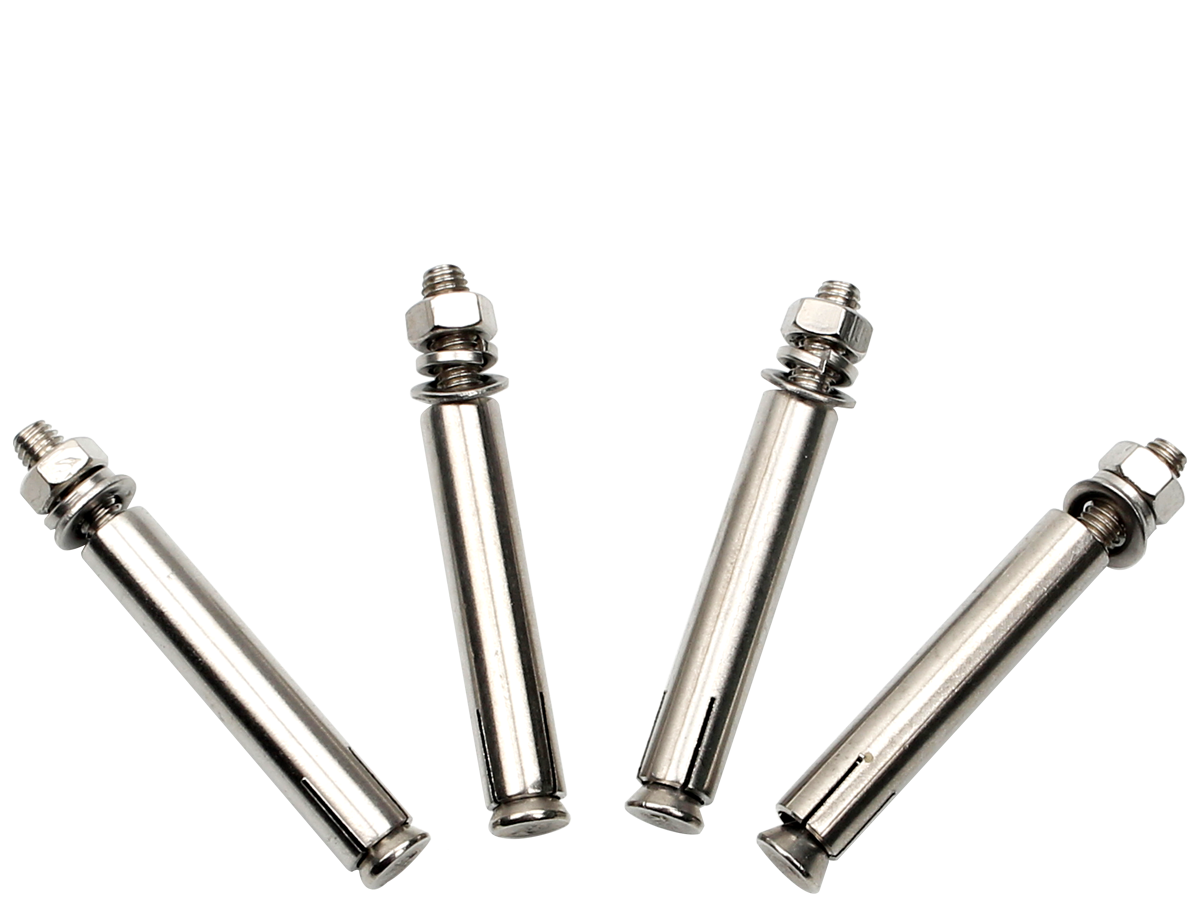

Seismic anchors are post-installed anchoring connectors between mechanical & electrical seismic supports and concrete slabs/beams. During an earthquake, they bear vertical and horizontal bidirectional seismic loads on the supports, transfer seismic forces from pipelines, cable trays and air ducts to the main building structure, and prevent supports from falling off and pipelines from collapsing to cause casualties.

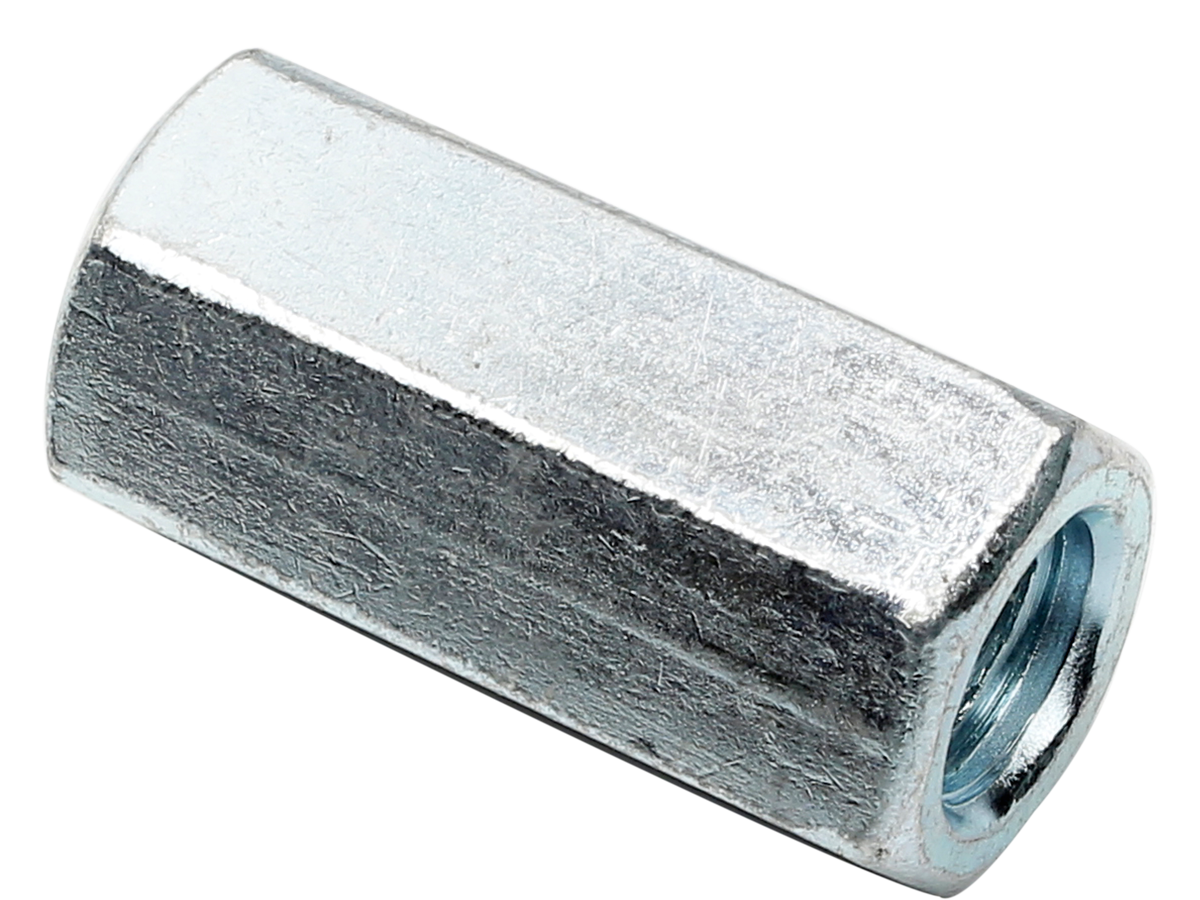

The threaded rod coupler is a hexagonal sleeve with internal threads at both ends, used to connect and extend two sections of fully threaded hanger rods. It serves as a standard connecting component for vertical hangers of seismic bracing. Material: Q235B carbon steel, hot-dip galvanized. Common specifications: M10, M12, M14, M16 (M10 and M12 are widely adopted for seismic bracing). Applicable standards: GB50981, CJ/T476, CECS420.

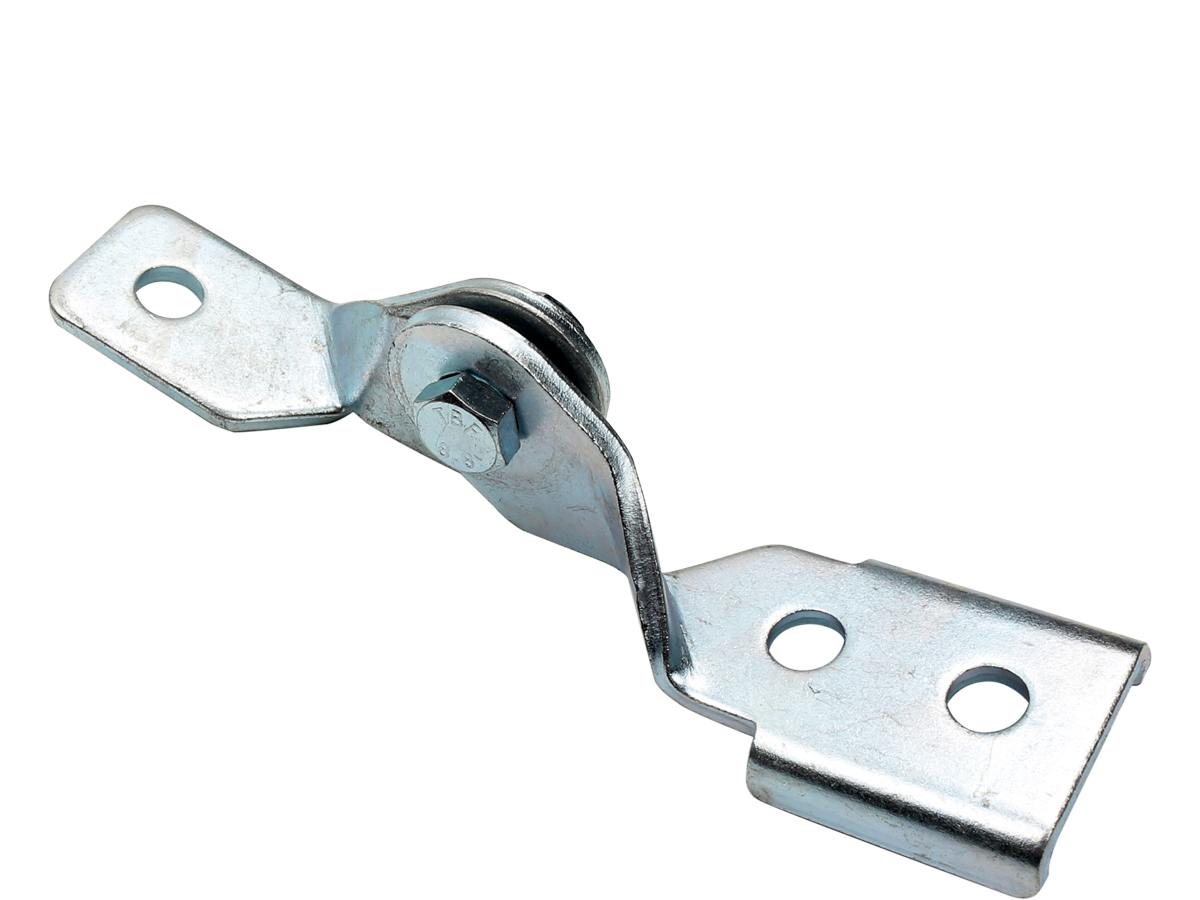

Seismic hinge, also known as seismic joint or universal seismic connector, is a core load-bearing component of seismic bracing. It is generally used with 41-series C-channels (single/double C-channel) and bracing struts to connect struts with main beams or structural bases and realize adaptive angle adjustment.

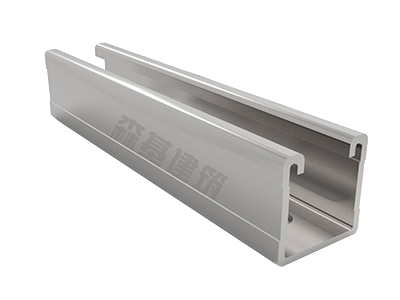

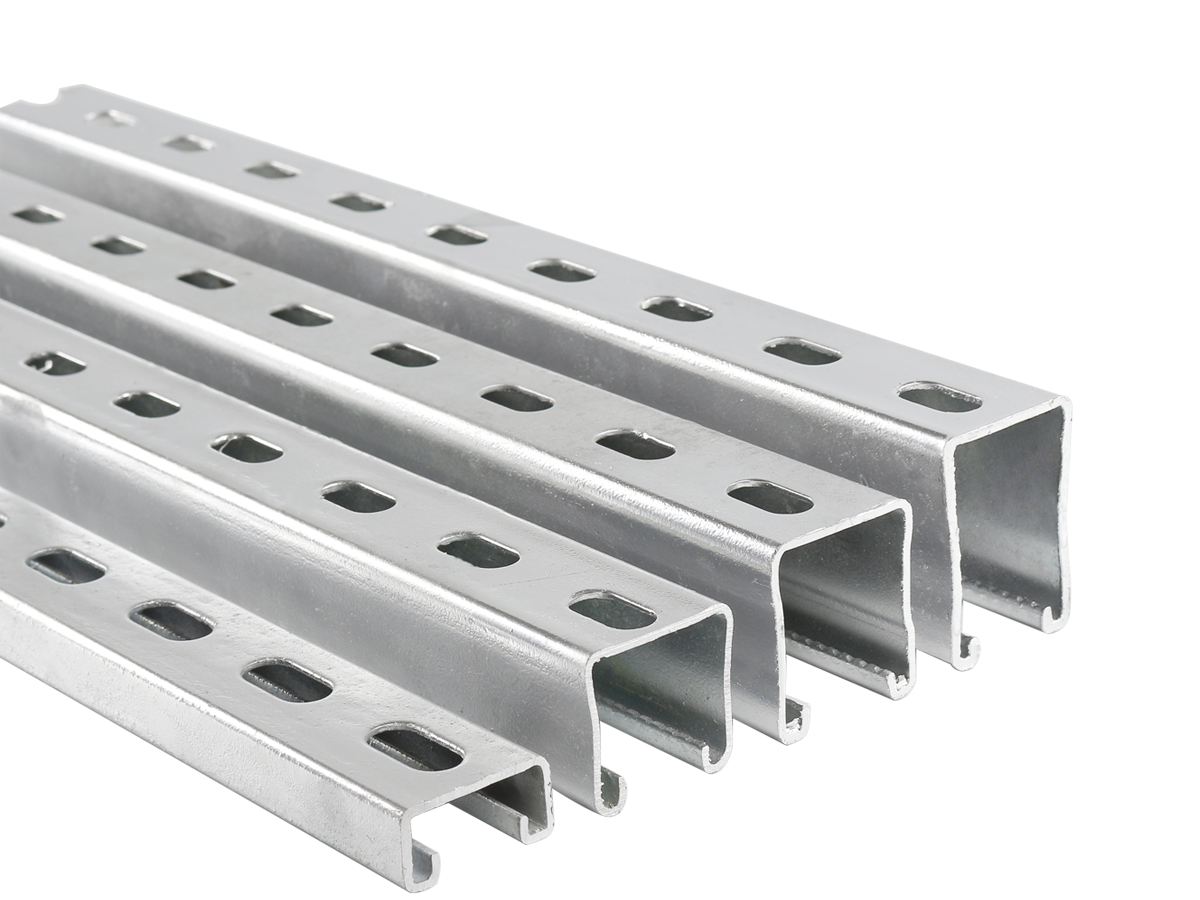

Single C-channel is a basic load-bearing component for seismic bracing. It is normally made of Q235B steel with hot-dip galvanized or electro-galvanized surface. The profile features an integrated T-slot, enabling direct assembly with seismic hinges, pipe clamps, bolts and slide nuts. It is widely used for seismic supports and hangers of air ducts, water pipes and fire protection pipelines. Common specifications: standard C-channels such as 41×21, 41×41 and 41×62.

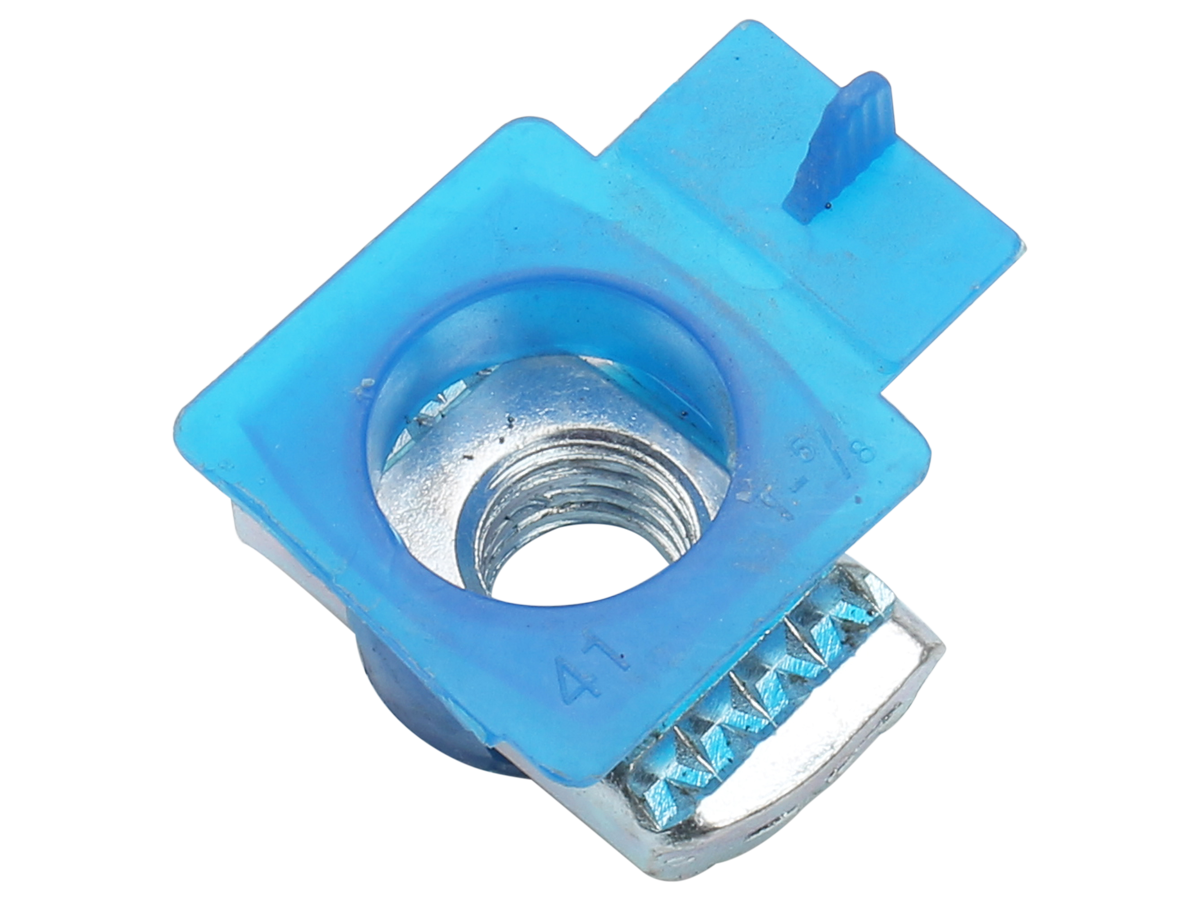

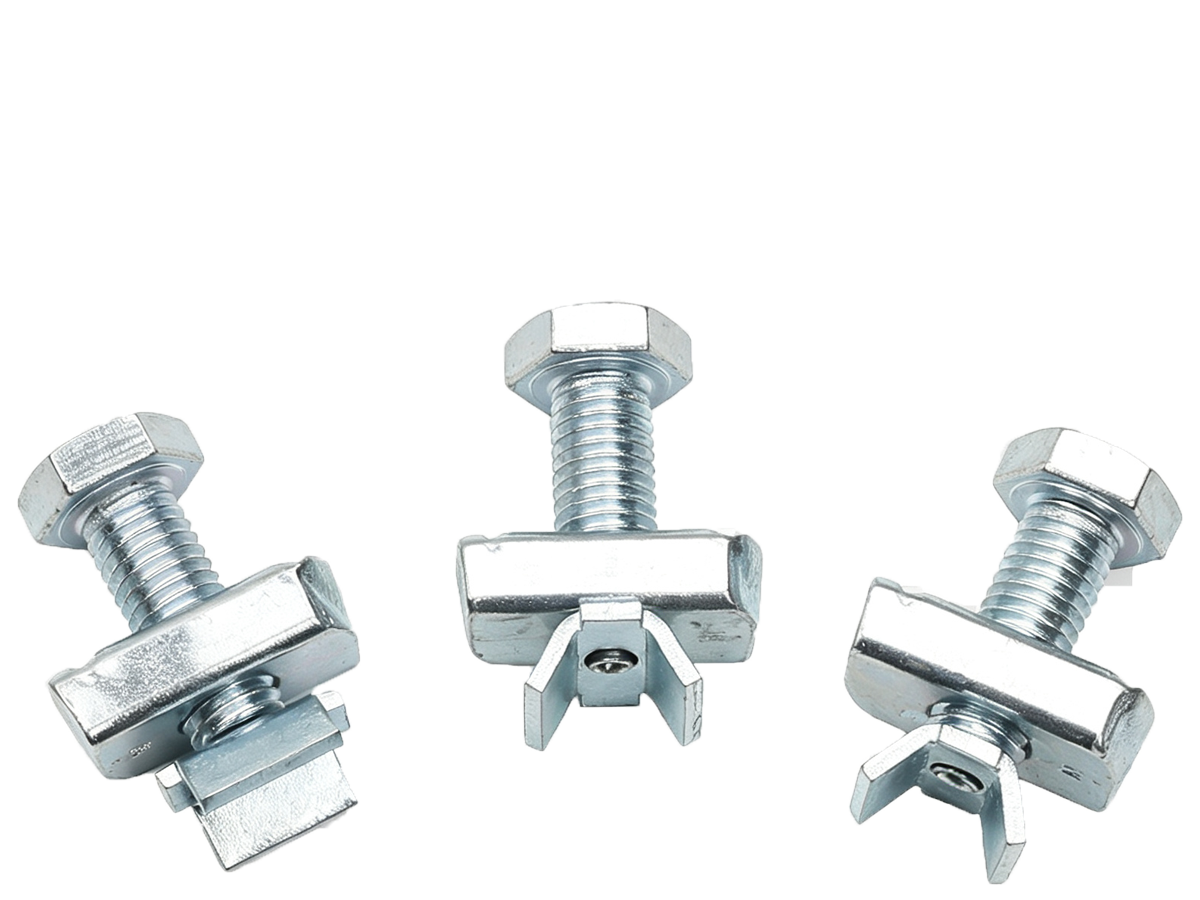

Suitable for 41-series seismic C-channel steel (41×41, 41×62, 41×82). Equipped with built-in spring clips, it can be inserted directly into any position of the channel groove for sliding positioning, eliminating pre-welding and pre-drilling operations.

Also known as C-section steel clip pad, U-shaped pressure plate and channel steel reinforcing gasket, the channel steel cover plate is a core fastening fitting for seismic supports. It is designed for use with standard 41×41 C-section channel steel. Fitted into the channel notch, it clamps the channel steel together with fully threaded rods and nuts to distribute stress and prevent deformation or cracking of the channel steel. It meets the welding-free assembly requirements specified in GB50981 Code for Seismic Design of Mechanical and Electrical Services.

The V-type stiffener, also known in the industry as threaded rod stiffener or hanger anti-buckling stiffener, is a special fitting for seismic gate-type hangers. It is used to reinforce the joint between vertical load-bearing hangers (full-threaded rods) and C-channel cross beams to address the instability and buckling of long hangers under compression. It is categorized as a hanger reinforcing component.

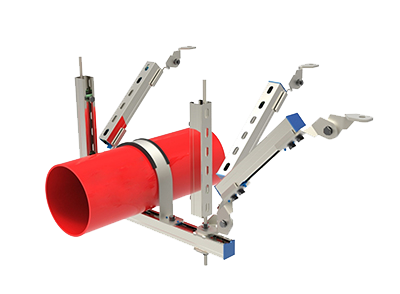

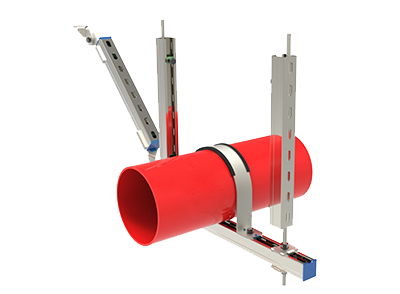

The U-type pipe clamp is a core fitting of seismic supports. It is mainly matched with lateral seismic bracing (diagonal braces perpendicular to the pipeline direction) to restrict the lateral displacement of pipelines. It is widely used for lateral seismic fixing of single fire protection, water supply & drainage and air-conditioning water pipelines. It can also serve as a hoop for ordinary load-bearing hangers.

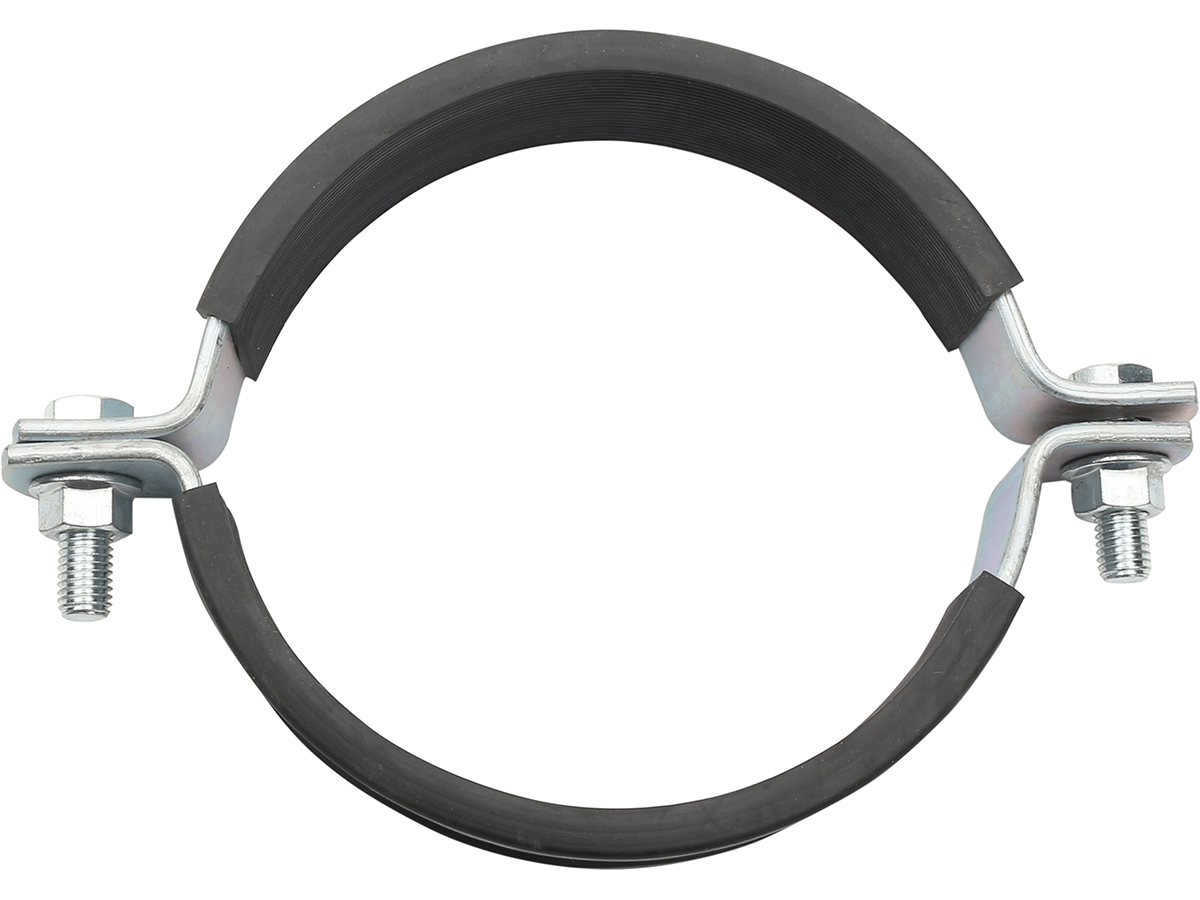

The O-type pipe clamp is a dedicated pipe hoop for seismic supports. It is mainly used for longitudinal seismic bracing of single pipes. Cooperating with seismic diagonal braces and C-channel hang rods, it secures fire protection, water supply & drainage, and HVAC pipelines. It restrains the axial displacement of pipelines along the pipe route during an earthquake. Fitted with rubber lining, it achieves vibration and noise reduction and protects the outer wall of pipelines.

Industry Names: 4-hole corner protector, L-type reinforced corner protector, 90° two-dimensional corner connector, seismic support L angle bracket. Compatible with 41-series C-channels (41×21, 41×41 channels). It is a core load-bearing corner fitting for seismic supports.

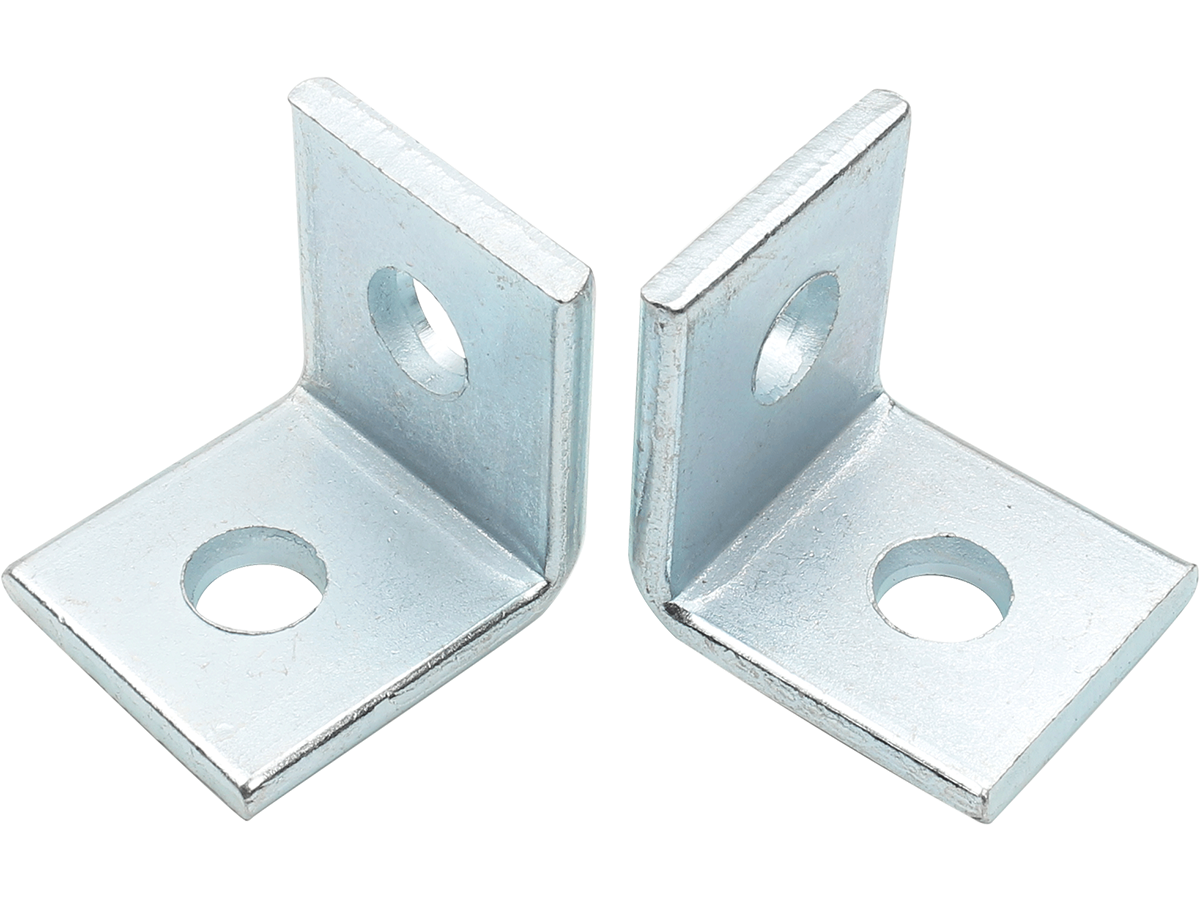

The 90° angle connector, commonly known as L-type right-angle connector or 90° angle bracket, is a core connecting fitting for prefabricated seismic supports and factory-fabricated pipe hangers & supports. It is used for the vertical 90° joint connection of two C-shaped steel channels, enabling right-angle assembly among support uprights, cross arms and diagonal braces. On-site welding is not required; assembly is achieved mechanically via bolts. It meets the load-bearing requirements specified in codes for electromechanical seismic resistance.

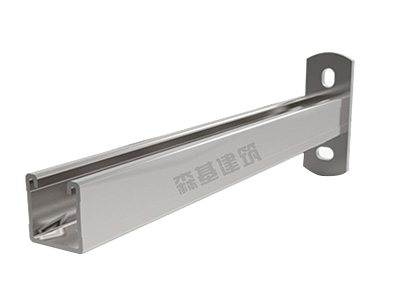

The 41×41 type steel cantilever arm refers to a cantilevered support component made from equal-leg angle steel or square steel tubing (typically cold-formed steel) with a cross-sectional side length of 41 mm. This specification offers a balanced profile that combines good structural strength with a lightweight design, facilitating easy on-site cutting and installation. Serving as a horizontal extension arm within a support system, it is primarily designed to bear moderate loads and is commonly used in support and suspension systems for cable trays, lightweight piping, air ducts, and small-scale equipment; it is suitable for industrial and building MEP (mechanical, electrical, and plumbing) installation projects with specific spatial and load-bearing requirements.

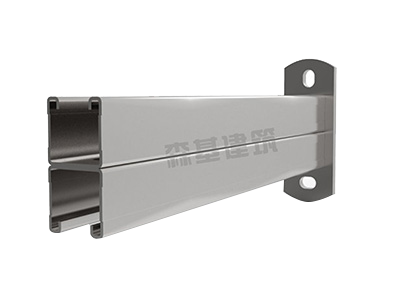

A double-channel cantilever bracket is a robust horizontal cantilever support component formed by butt-welding two channel steel sections together or joining them with connecting plates. Its dual-channel cross-section design provides exceptional flexural and torsional rigidity, allowing it to serve as a critical element of heavy-duty support systems that extend from the main structure to carry piping, cable trays, or large-scale equipment located beneath. Offering superior load-bearing capacity and stability compared to single-channel brackets, this structure is widely used in industrial facilities, pipe galleries, and large public buildings for cantilevered support applications requiring long spans and heavy load-bearing capabilities.

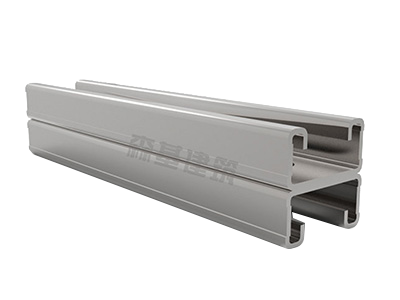

A paired-channel section is a structural configuration formed by securely joining two identical channel sections—connected at their webs or flanges via connecting plates (batten plates) or lacing bars—to function as a single, unified cross-section. Its primary purpose is to significantly increase the cross-sectional moment of inertia, thereby greatly enhancing the component's flexural and compressive load-bearing capacities and overall stability, while maintaining cost-effectiveness. Such composite members are widely used in civil and steel structure engineering—for applications such as heavy-duty support columns, chords for long-span trusses, crane main girders, and various other load-bearing structures subject to substantial loads.

A single-channel structural member consists of a single channel section—typically hot-rolled steel of Q235 or Q345 grade—used directly as a primary load-bearing or supporting component. Characterized by a simple cross-sectional profile, it is easy to source, fabricate, and install, while offering good flexural strength and lateral stability. Widely used in civil and steel structure engineering, it serves as an economical and versatile structural element in applications such as small-scale supports, chords for lightweight trusses, equipment bases, pipe brackets, and secondary architectural beams.

Jiangsu Senji Architectural Engineering Technology Co., Ltd. is a high-tech enterprise specializing in seismic supports and hangers, prefabricated support systems, pipe gallery supports, and fire-resistant insulation materials. It is a comprehensive company integrating design and R&D, manufacturing and installation, system commissioning, and after-sales service.

Jiangsu Senji Architectural Engineering Technology Co., Ltd. is a high-tech enterprise specializing in seismic supports and hangers, prefabricated support systems, pipe gallery supports, and fire-resistant insulation materials. It is a comprehensive company integrating design and R&D, manufacturing and installation, system commissioning, and after-sales service.

For seismic supports and hangers (DN65–150), the slenderness ratio of members subjected to compression shall be no greater than 200, while the slenderness ratio of members subjected only to tension shall be no greater than 300.

For seismic supports and hangers (DN65–150), the slenderness ratio of members subjected to compression shall be no greater than 200, while the slenderness ratio of members subjected only to tension shall be no greater than 300.

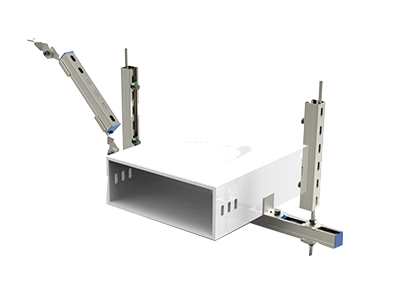

A lateral seismic brace for cable trays is a specialized seismic component designed to resist horizontal lateral forces generated during an earthquake, thereby preventing the cable tray system from shifting laterally or overturning. It typically consists of an anchor rigidly connected to the building structure, a diagonal brace capable of withstanding both tension and compression (such as a combination of C-channel steel and threaded rods), and a specialized clamp connecting to the cable tray, forming a stable triangular support system. Designed and installed in accordance with national seismic design codes, this brace effectively restrains lateral displacement during seismic events, safeguarding the safety and continuous operation of power and communication lines; it is a critical component of seismic protection systems for mechanical and electrical installations in modern buildings.
