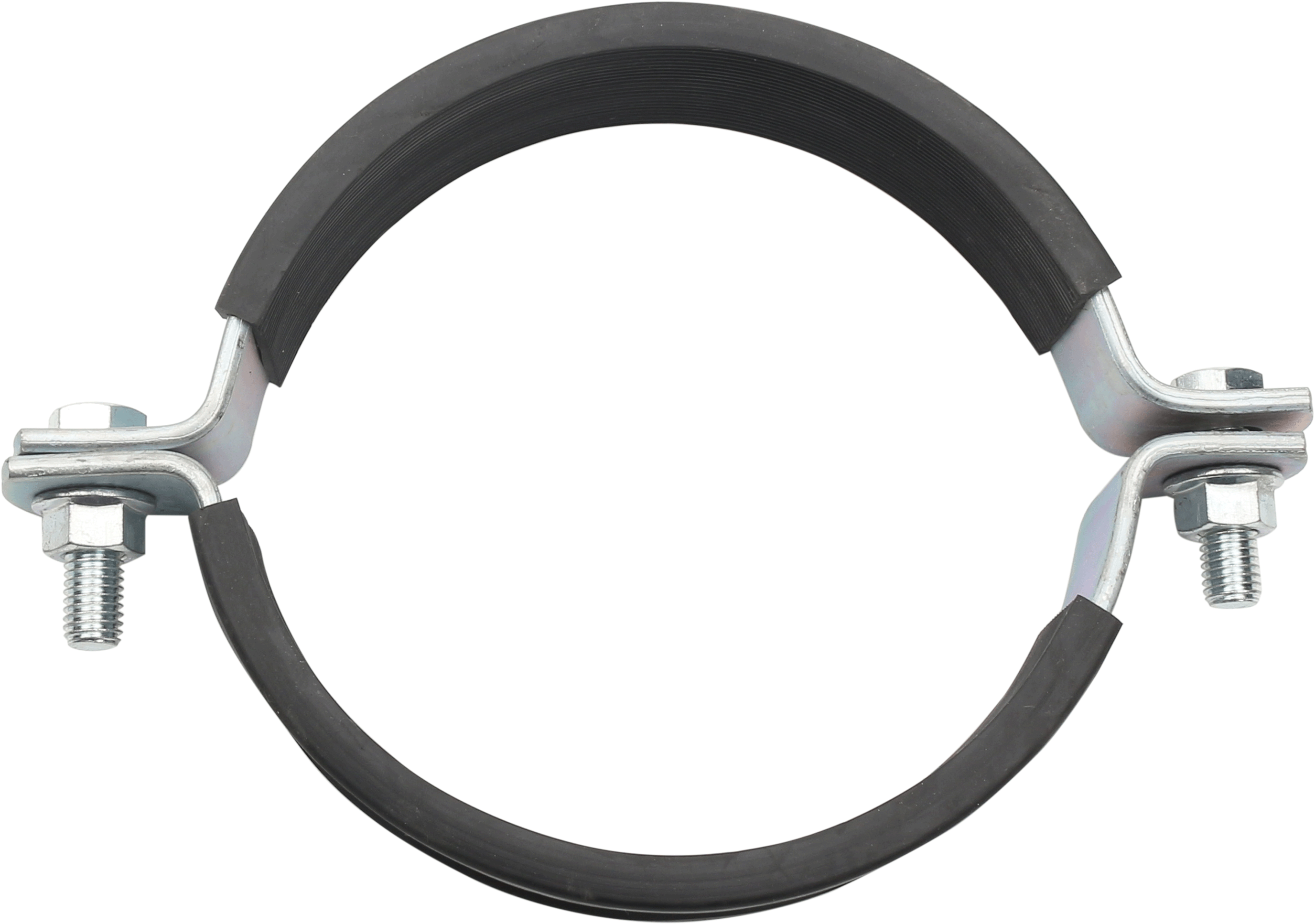

The O-type pipe clamp is a special pipe hoop for seismic supports. It is mainly adopted for longitudinal seismic bracing of single pipelines. Combined with seismic diagonal braces and C-channel hang rods, it fixes fire protection, water supply & drainage and HVAC pipelines. It restrains axial displacement of pipelines during earthquakes. Equipped with rubber lining, it reduces vibration and noise and protects the outer surface of pipes.
O-type pipe clamp: Full circular enclosure for longitudinal seismic bracing (diagonal braces parallel to pipes). It provides even clamping force and suits conventional water pipelines of DN50 ~ DN300.
U-type pipe clamp: Semi-open U shape for lateral seismic bracing (diagonal braces perpendicular to pipes), mostly used for lateral bracing of small-diameter single pipes.
Omega pipe clamp: Consists of two semicircular parts, specially used for portal multi-pipe supports.
Pipe clamp body: Two symmetrical stamped semicircular steel plates forming a complete ring after closure.
EPDM rubber lining: Anti-slip, vibration-damping, insulating and anti-corrosion on inner side, eliminating noise caused by water flow vibration.
Double-side fastening bolts: Grade 4.8 carbon steel bolts for bidirectional locking, achieving balanced stress without pipe deformation.
Top connecting lugs: For connecting seismic hinges, hang rods and longitudinal diagonal braces, compatible with the complete seismic support system.
Main steel material: Q235B carbon steel (national standard mainstream); 304 stainless steel is optional for corrosive environments.
Electro-galvanizing: For indoor ordinary fire protection and water supply & drainage projects with low cost.
Hot-dip galvanizing: For utility tunnels, humid basements and outdoor locations with superior corrosion resistance.
Rubber gasket: EPDM (Ethylene Propylene Diene Monomer), featuring resistance to high & low temperature, water and aging.
Longitudinal seismic supports for fire sprinkler and fire hydrant pipelines
Seismic hangers for hot & cold water supply, rainwater and sewage pipelines
Chilled water and cooling water pipelines of central air-conditioning HVAC systems
Electromechanical pipelines in utility tunnels, underground parking garages and high-rise buildings
Full-enclosure clamping: Circular wrapping disperses seismic load to avoid local damage to pipes.
Vibration & noise isolation: Rubber gasket blocks vibration transmission and reduces operational noise of pipelines.
Flexible installation: Double top lugs can be directly connected with seismic hinges, threaded rods and C-channel brackets for modular assembly.
Stable bearing capacity: Tested bearing capacity reaches 6~12KN, meeting the load requirements of electromechanical seismic codes.
Standardized & universal: Widely adopted industry fitting, compatible with C-channels and connectors of all brands of seismic supports.
DN50 (60), DN65 (76), DN80 (89), DN100 (114), DN125 (140), DN150 (165), DN200 (219), DN250, DN300
Suitable for fire-fighting galvanized steel pipes, seamless steel pipes, PPR / stainless steel water supply pipelines.
GB 50981-2014 Code for Seismic Design of Building Electromechanical Engineering(Mandatory standard; must be adopted in seismic fortification zones of intensity 6 and above)
CJ/T 476-2015 General Technical Conditions for Seismic Supports and Hangers of Building Electromechanical Equipment
CECS 420:2015 Specification for Installation and Acceptance of Seismic Supports and Hangers
HG/T 21629-2021 Standard Drawings for Pipe Supports(A6 Adjustable O-type Suspended Pipe Clamp)
