Square hollow section beam connector

Square hollow section beam connector

Download Inquiry

Description

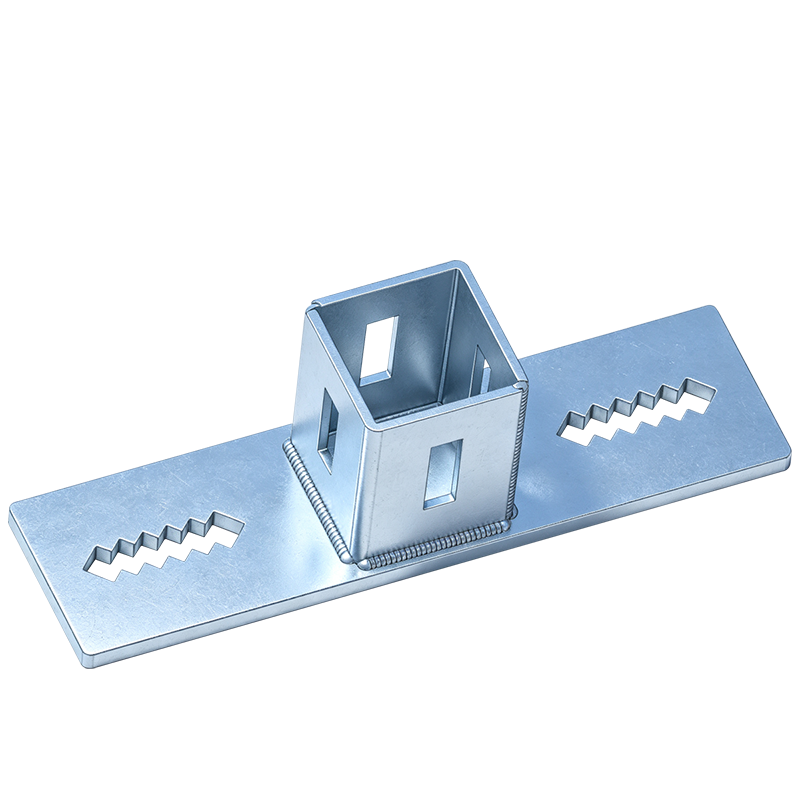

Square hollow section beam connector

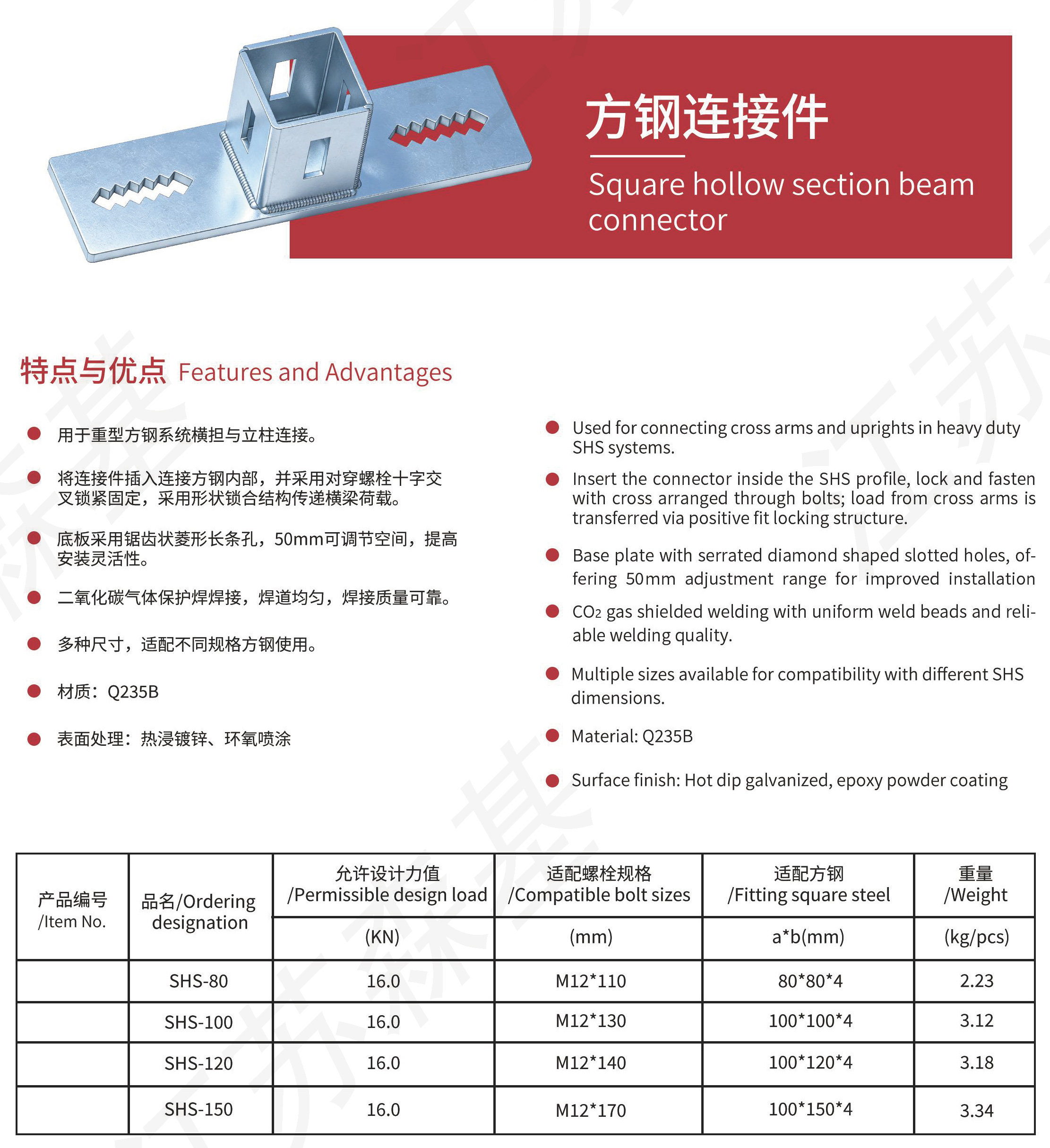

specification

Features and Advantages

1、Used for connecting cross arms and uprights in heavy duty SHS systems.
2、Insert the connector inside the SHS profile, lock and fastenwith cross arranged through bolts; load from cross arms istransferred via positive fit locking structure.
3、Base plate with serrated diamond shaped slotted holes, offering 50mm adjustment range for improved installation
4、CO2 gas shielded welding with uniform weld beads and reliable welding quality.
5、Multiple sizes available for compatibility with different SHS dimensions.
6、Material: Q235B
7、Surface finish: Hot dip galvanized, epoxy powder coating
